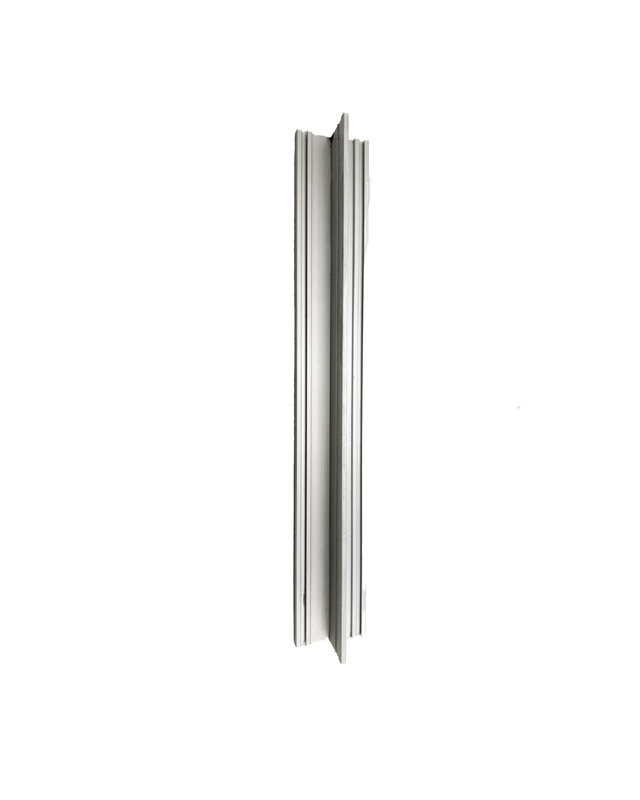

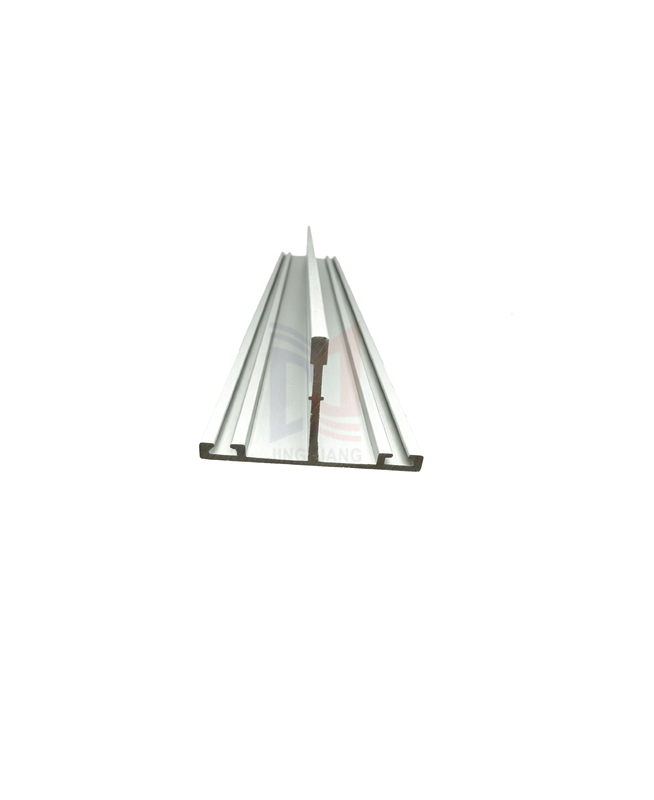

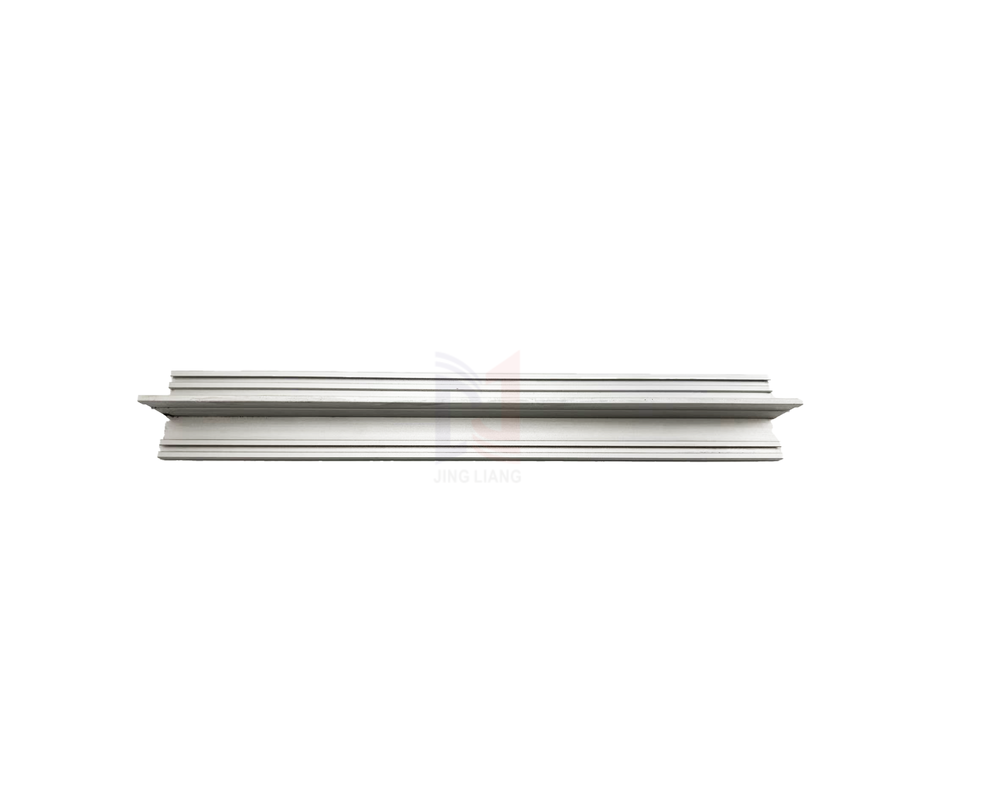

Anti-corrosion and Customized Seam for Facade Support System
This architectural aluminum seam is manufactured from 6063-T5/T6 architectural-grade aluminum alloy through extrusion processes. Available in two main categories: closed aluminum seam and open aluminum decorative seam. Standard widths include 6mm, 8mm, 10mm, and 12mm to match common curtain wall dimensions.
Profile cross-sections feature H-type, T-type, L-type, and U-type configurations with optional finishes including fluorocarbon coating (PVDF), powder coating, anodizing, and wood grain transfer. Colors are matched to curtain wall panel hues for universal vertical and horizontal segmentation applications.
Product Features
- Precise Dimensional Control: Standardized profiles ensure uniform fixed joint widths, eliminating uneven gaps during installation. Design accommodates thermal expansion and contraction with built-in expansion allowances to prevent panel compression and impact damage.
- Equal Pressure Ventilation: Open aluminum strips create an equal pressure rain screen structure through cavity air circulation. Rainwater is directed and discharged along the cavity, significantly reducing water infiltration risks. Preferred structural solution for NBK ceramic panel curtain walls.
- Corrosion-resistant and Weatherproof: 6063 aluminum alloy with fluorocarbon coating provides resistance to outdoor UV rays and acid rain. Fluorocarbon color retention exceeds 20 years, ensuring rust-free, deformation-free, and crack-free performance.
Applications
High-End Public Construction Projects
Office buildings, commercial complexes, airport and high-speed rail stations, exhibition halls, hotel facades (primarily using open seam aluminum strips).
Real Estate Residential Buildings
High-rise exterior aluminum panels, door decorations (mostly utilizing closed seam pressure strips).
Indoor Curtain Wall & Ceiling Systems
Lobby facades, elevated exterior walls, corridor decorative strips.
Technical Support & Services
Our Cladding Support Systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements. Contact us for more information about our technical support services.
Packaging & Shipping
Products are carefully packaged in custom-made, environmentally conscious materials designed to prevent damage during transit. We partner with reliable shipping companies and offer multiple transportation options including ground, air, and sea freight to accommodate your specific project requirements and timelines.
